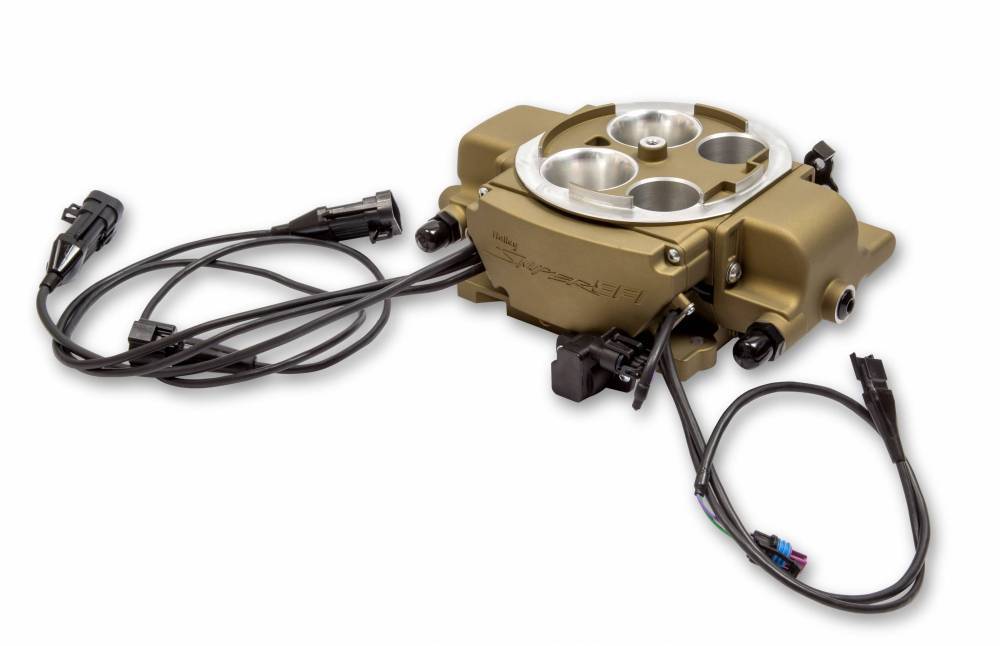

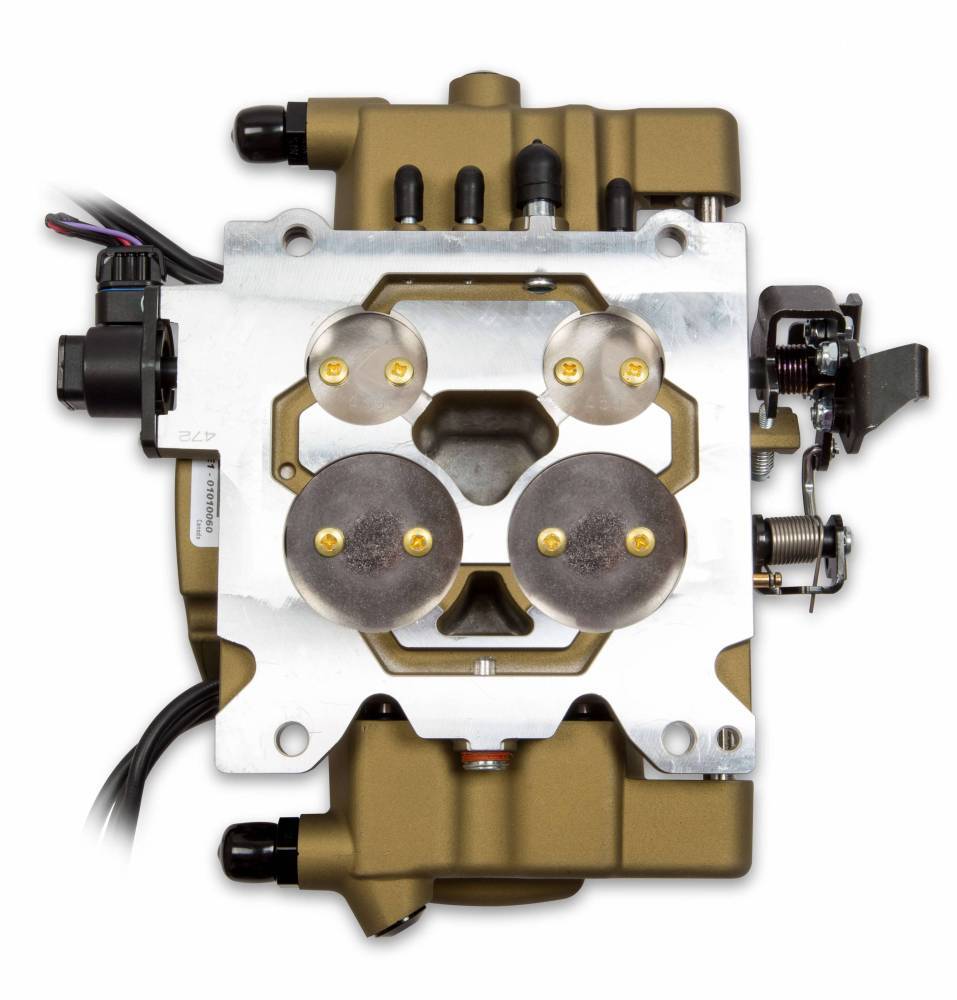

Holley Sniper EFI Quadrajet Self-Tuning w/ handheld EFI monitor, Classic Gold Finish

Are you tired of rebuilding the 50+ year old Rochester Quadrajet™ (Q-Jet) on your classic Chevrolet, GMC, Buick, Oldsmobile, or Pontiac? Introducing Sniper EFI Quadrajet™. The first bolt on spread bore electronic fuel injected throttle body system that does not require any additional adapters, sealing plates, or intake manifold swaps! The Sniper EFI Rochester Quadrajet™ (Q-Jet) system retains the same great features as the 4150 Sniper EFI version such as; four 100lb/hr Injectors, built in timing control, a 3.5" full color touchscreen and much more! The throttle body will support up to 500 horsepower naturally aspirated. In addition to all of these great tried and true features, the Sniper EFI Rochester Quadrajet™ (Q-Jet) system will fit most stock air cleaners and offers multiple fuel inlet configurations that allow for a stock appearing installation!

Features:
Available in 3 Finishes - Classic Gold, Shiny and Black Ceramic
Designed to deliver the signature Rochester Roar at Wide Open Throttle!
Throttle body mounted ECU – no extra boxes to mount
Supports up to 500hp with Four 100 Lb/Hr Injectors!
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
Integrated ignition timing control

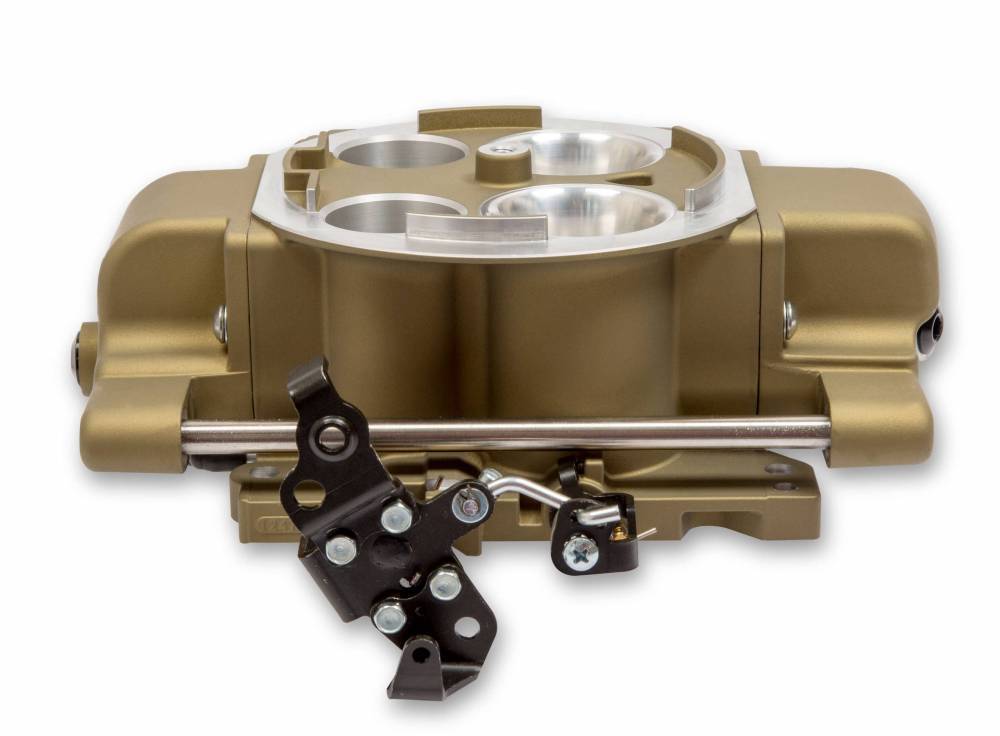

Transmission provisions on throttle lever for TH350/TH400 and 200R4/700R4
Fits most stock Rochester Quadrajet™ (Q-Jet) air cleaners
Brake Booster adapter included, if required
Universal Throttle and transmission kickdown bracket included

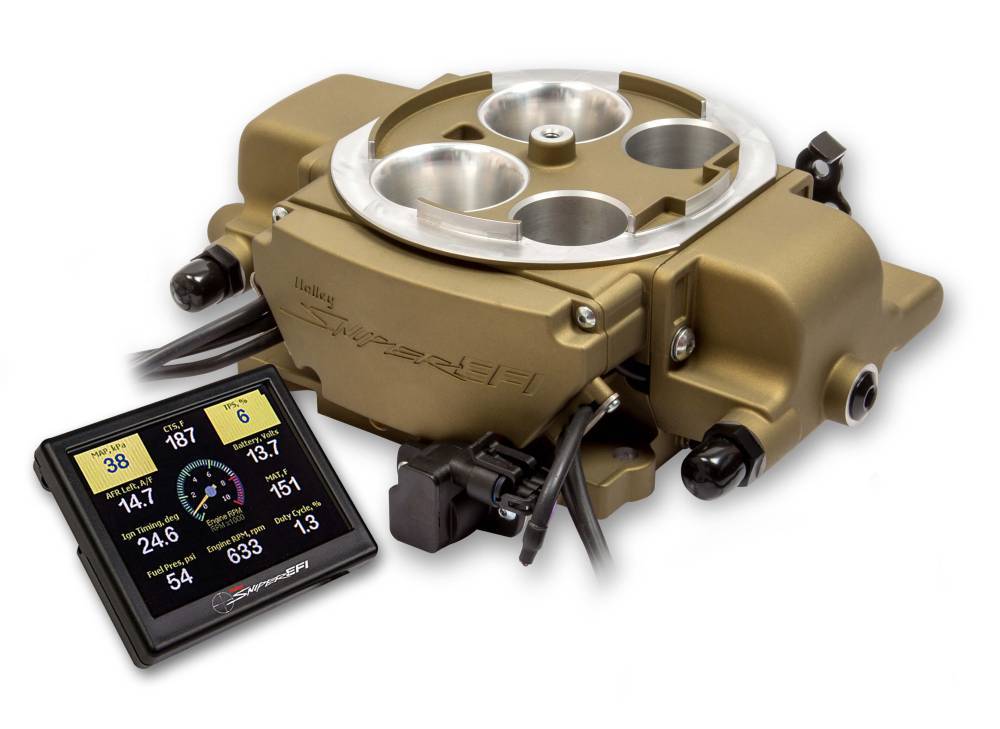

High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real time Fuel Map Learn!
OEM Style Throttle Position Sens0r (TPS)/ and Idle Air Control (IAC) for years of dependable service.
Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
Requires external fuel pressure regulator, such as: 12-886 or 12-879
Patent Pending

Brand Holley Sniper EFI
CFM 715
Emission Code 3
Finish Classic Gold
Flange Style Spreadbore
Fuel Pressure 58.5 PSI
Height 3.28"
Injector Size 100 lb/hr @ 58.5 PSI
Inlet / Outlet Size 9/16-18 Female O-Ring (AN 6)
MAP Sensor 2Bar
Max Horsepower Rating 500 Naturally Aspirated
Product Type Sniper 4BBL TBI Kits
Throttle Bore 1.375 Primary / 2.00 Secondary
Transmission 700R4/200R4
