Edelbrock Round Port Pontiac 72cc Semi-machined Heads, (Pair) EDL-60509
EDL-60509

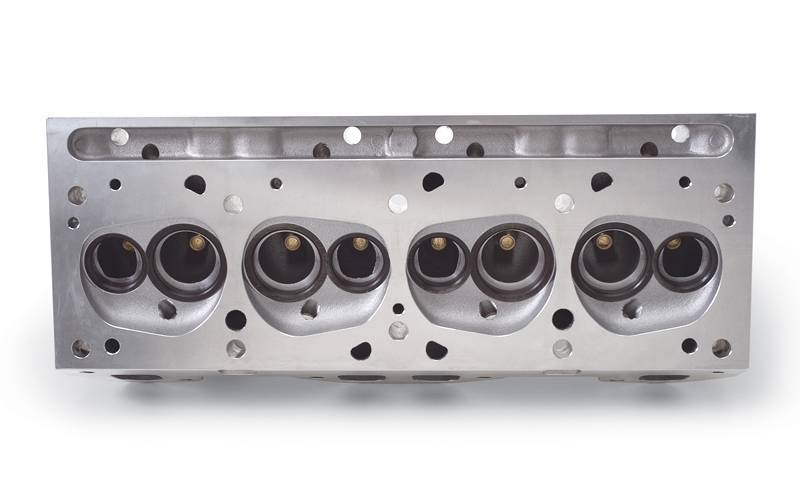

Pontiac 72cc Semi-machined Heads (Pair)
Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter.
Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter.
Not Available
Availability: See Head Builder Kit Part # BPI-HB-002-DP-72
Pricing:
$1,859.90
Description
Edelbrock Performer RPM heads produce outstanding horsepower with excellent low speed torque and throttle response. Designed for 1965-79 389-455 c.i.d. Pontiac engines, these heads are patterned after the 1969 -70 Ram Air IV Pontiac cylinder head. Two styles are available: a street legal 87cc combustion chamber version for low compression applications using 92 actane fuel and a 72cc chamber version for higher compression, racing applications. Both heads have Ram Air IV exhaust port flanges.
BP has conducted extensive flow bench, dyno, and track testing with these heads, all resulting in great performance numbers. We have cylinder head packages for any application, from 7-second racecars to 8 & 9 second street cars and even daily drivers. Call for a cylinder head combo to fit your needs.
Specifications/Information
- Cylinder Head Specifications:
- Combustion chamber volume: 72/75/87cc
- Intake runner volume: 215cc
- Exhaust runner volume: 175cc
- Intake valve diameter: 2.11"
- Exhaust valve diameter: 1.66"
- Valve stem diameter: 11/32"
- Valve guides: Manganese bronze
- Deck thickness: 5/8"
- Valve spring diameter: 1.46"
- Valve spring maximum lift: .575"
- Rocker stud: 7/16"
- Guideplate: Hardended steel
- Pushrod diameter: 5/16"
- Valve angle: 14°
- Exhaust port location: Stock Ram Air IV
- Spark plug fitment: 14mm x 3/4 reach, gasket seat
Details
- EDL-60509
- EDL-60509
- Edelbrock
- See Head Builder Kit Part # BPI-HB-002-DP-72
- New
Shipping Information
- Item Requires Shipping
- 70.0 lbs.
