Power Distribution Module for Sniper 2 EFI Installations

Additional Images

Your Selected Product

Pricing: $153.95

Part # HLY-554-200

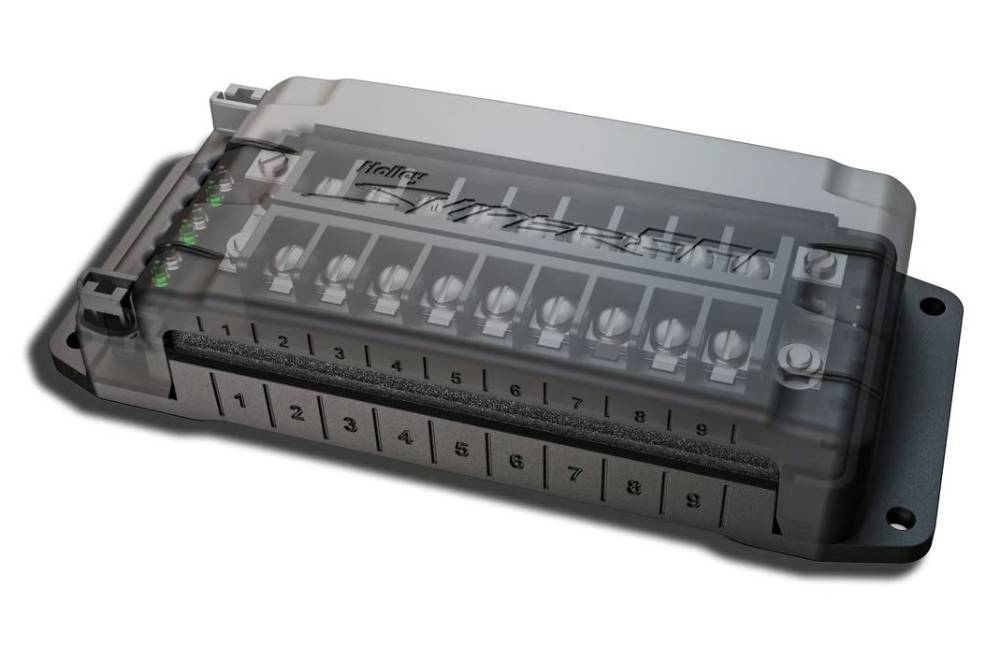

The Power Distribution Module (PDM) is a cost-effective and optional accessory that isolates the core of your EFI and ignition wiring into one, easy to use location.

Description

Simply slide the stripped wire ends under the positive lock connector and tighten down the set screw.

It also distributes power to your EFI fuel pump and a single fan with built in relays (second fan can be ground triggered through the included input/output harness). Two additional 2-amp circuits can power low current accessories like gauges or to trigger relays.

***To use the PDM with Sniper 2 harness with included relay, simply terminate the relay to pump power wire and cut and route the trigger from the relay to the trigger on the PDM block***

Battery and a switched 12 volt source are all that's required from your vehicle to power the PDM.

Features:

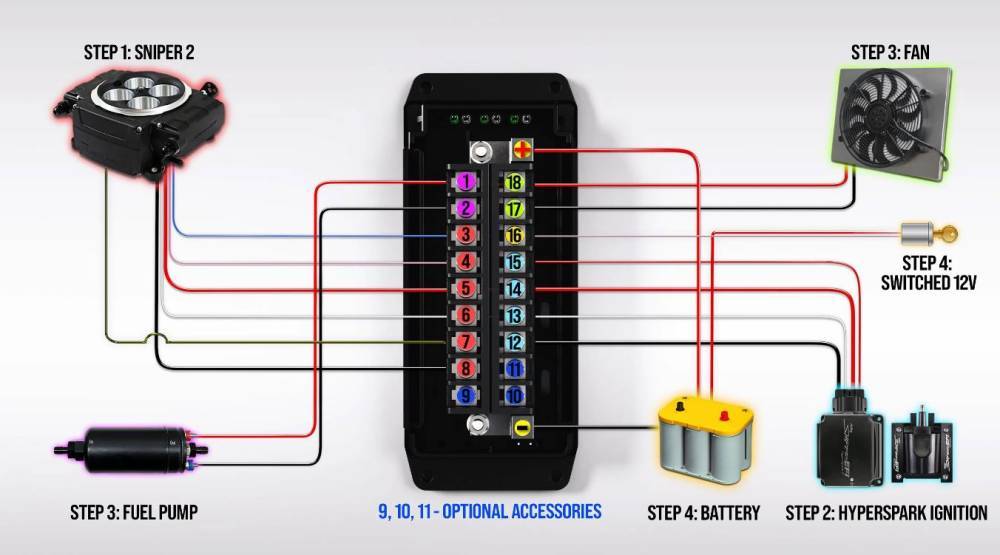

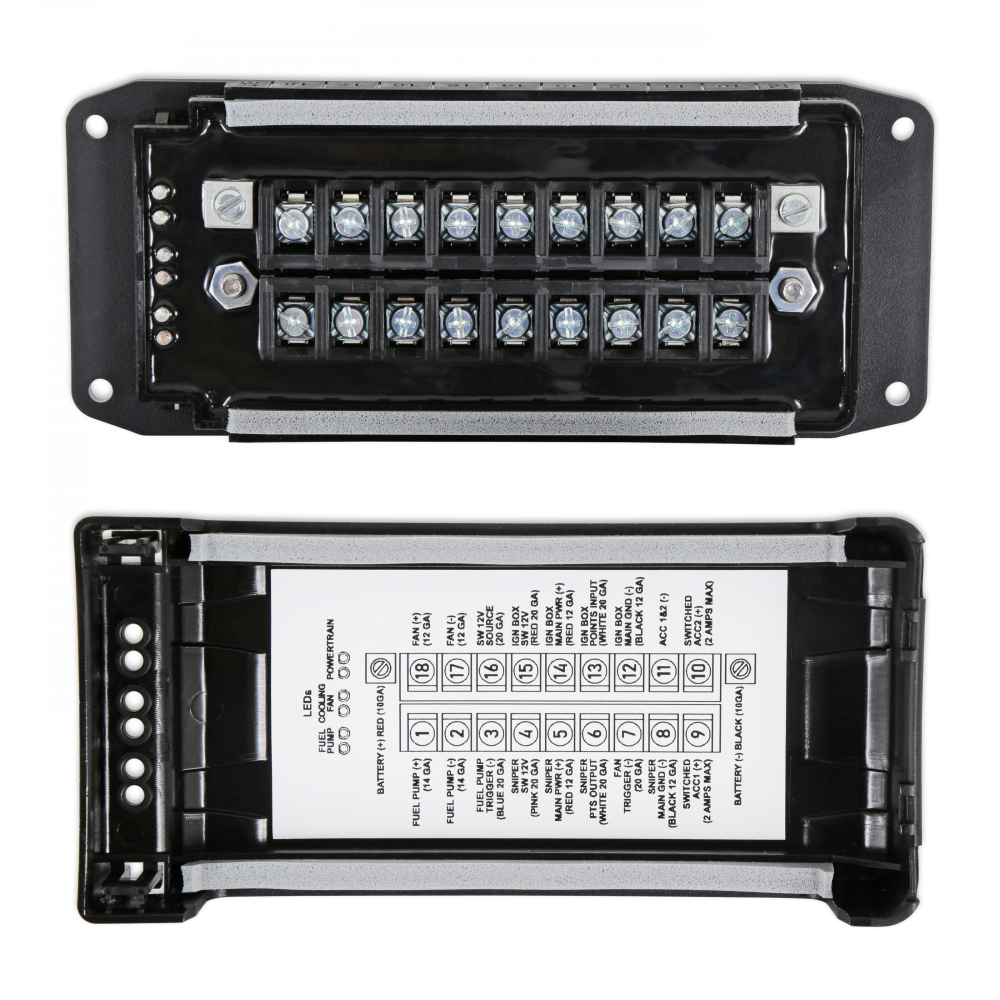

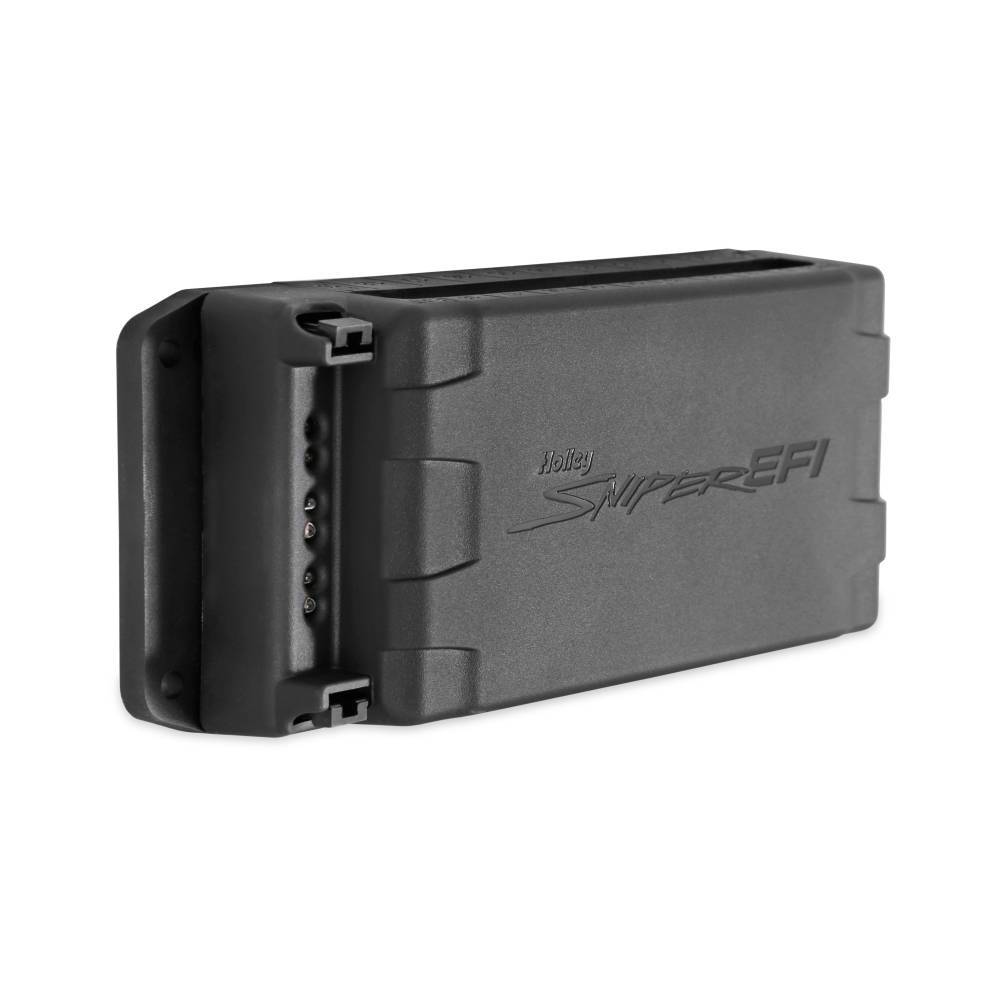

Provides conditioned Power, Ground and Switched Connections for ALL components within a Sniper 2 EFI Install. (Throttle Body, Fuel Pump, HyperSpark Ignition System, and Optional Fan) 3 Relay Channels - 15A Powertrain (Sniper Throttle Body and Ignition System) 25A - Fuel Pump Output - 25A Fan Output LED status indicators, show you which channel is triggered at a glance Removable cover for easy accessibility, with wiring diagram built into the lid, like a fuel panel.
