DSS Racing
Additional Images

DSS Custom Piston Set, Up to 4.200 Bore, Any Stroke, Flat or Dish, Set

(0) Reviews: Write first review
DSS-CUSTOM
Fully Custom DSS Pistons
Made with 2618 - T6 forging
Choose Dish or Flat Top
Any Stroke and up to 4.200 Bore
Choose rings, pins, and more
Enter specs and details to help us customize it
Our experts ensure the custom piston is built for your application
Set/8
Availability: Ships in 3-4 weeks
Pricing: $1,399.00

Customize Your Item

- Choose Piston -
 * required
- Choose Piston Stroke -
- Choose Rod Type -
 * required
- Choose Ring Option -
 * required
- Choose Piston Type -
 * required
- Select Application -
 * required
- Select NA/Power Adders -
 * required
- Select Number of Pistons -
 * required
Qty:

Description

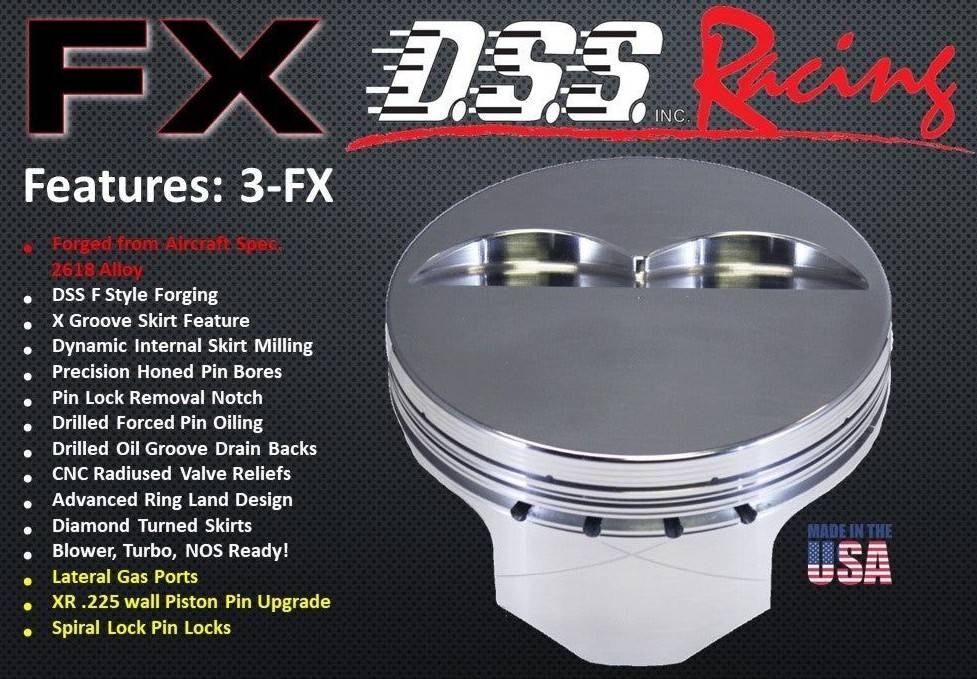

DSS 3-FX Series Forged Pistons

Top Of The DSS Line · 2618 Alloy · Gas Ported · Set of 8

The 3-FX is the top piston in the DSS lineup — everything the 2-FX brings, plus two upgrades aimed squarely at high-boost and hard-race duty.

What The 3-FX Adds

Extreme Duty XR wrist pins. When cylinder pressure climbs, the pin is one of the first components to feel it. The XR pin is built to take the load where a standard pin starts to give ground.

Horizontal gas ports. Gas ports route combustion pressure behind the top ring, forcing it harder against the cylinder wall. That's how you hold ring seal at the high boost and high cylinder pressure where a conventional ring pack starts to leak.

The Platform Underneath

  • Premium aircraft-spec 2618 alloy forging
  • Patented X Groove skirt
  • Drilled, forced wrist pin oiling
  • Deep CNC valve reliefs for aggressive head and cam packages
  • Thinner, shallower ring grooves for maximum ring seal and land strength
  • 2nd ring land accumulator groove prevents ring flutter
  • 3rd ring land scraper relief and oil ring groove relief reservoir
  • Diamond-turned high strength skirts
  • CNC weight reduction and dynamic skirt milling
  • Brushed piston crown

Ring package matters here. Gas-ported pistons need matched ring gaps and a ring set suited to the porting. Call our tech line before you order and we'll make sure the rings and the piston are working together.

If you're running serious boost, heavy nitrous, or a race engine that lives at wide-open throttle, this is the piston to spec. Blower, turbo and nitrous ready. Forged and machined in the USA. Sold as a set of 8.

Questions on your combination? Call 866-762-7527 and one of our engine specialists will walk through it with you.

Details

  • DSS-CUSTOM
  • DSS-CUSTOM
  • DSS Racing
  • Ships in 3-4 weeks
  • New
