IMI Pontiac Mini Starter w/ 1.4 KW Motor / 1964 & Later Block Mount IMI-108N
IMI-108N
Pontiac Mini Starter w/ 1.4 KW Motor / 1964 & Later Block Mount
*Can be used with Ram Air Exhaust Manifolds*
Pricing:
$229.95
Description

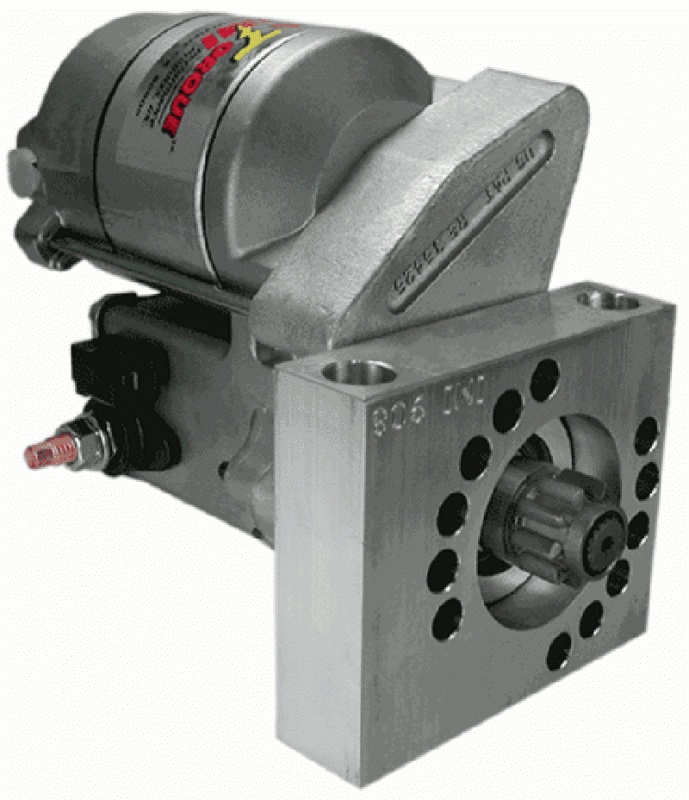

The IMI Mini Starter features 2 different size HP motors, 4:1 gear reduction, 16 position options and draws 175 Amps @ Full Load.

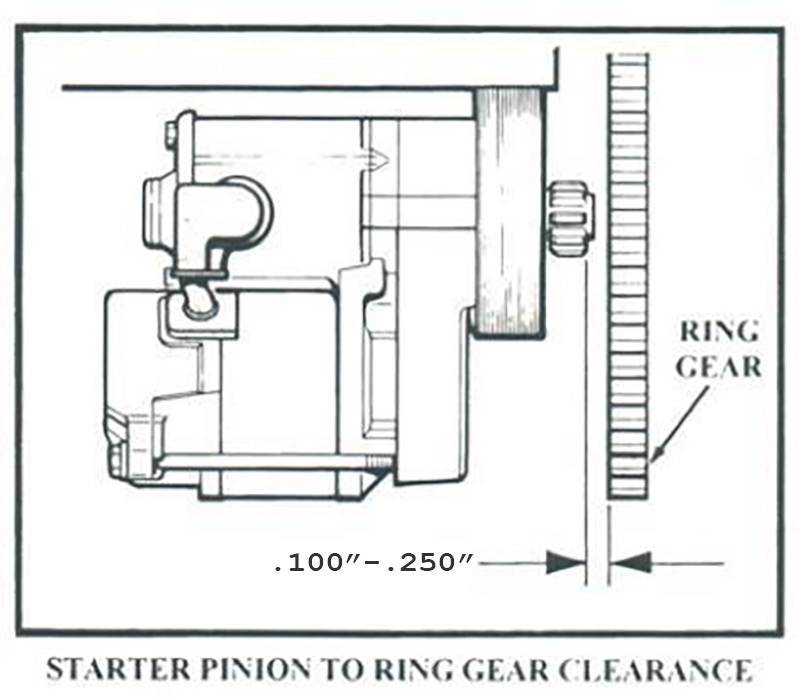

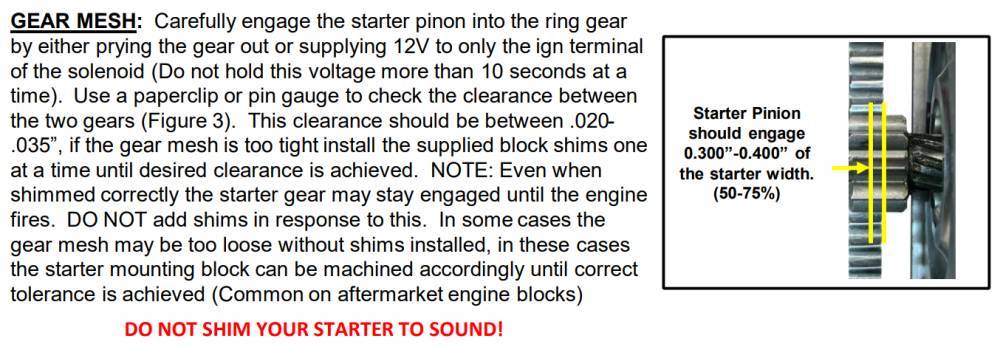

? 1.4kW (1.88HP) ? 4.4:1 Gear reduction ? Recommended for up to 14:1 Compression ? Machined Aluminum Adapter Block ? Adjustable drive end housing Starter pinion to ring gear clearance- 0.100" (+/- 0.050")Tech Help
Question:
My old starter had the 12volt wire and two smaller wire an “R” and “S” wire. The new starter has only one small pigtail wire along with the12 volt wire. What is the proper way to wire the new starter with my current wire set up?
From IMI
These two smaller wires are usually purple (S) and yellow (R).
The S (solenoid) wire will go to the pigtail supplied and clip into spade receptacle.
The R (run) wire will feed 12v to the coil in original wiring. This can be done by pulling the rubber boot on the opposite side of the main 12v battery connection away from its current position exposing the internal motor connection.
You can at this point remove the nut and connect the proper size ring terminal on the R wire. Connect the ring terminal to the stud and replace the nut and rubber boot.
It may be easier to connect the ring and a short amount of wire (pigtail) to the terminal, then connect into the R wire with spade or bullet male & female connectors. This may help the installation process.
My old starter had the 12volt wire and two smaller wire an “R” and “S” wire. The new starter has only one small pigtail wire along with the12 volt wire. What is the proper way to wire the new starter with my current wire set up?
From IMI
These two smaller wires are usually purple (S) and yellow (R).
The S (solenoid) wire will go to the pigtail supplied and clip into spade receptacle.
The R (run) wire will feed 12v to the coil in original wiring. This can be done by pulling the rubber boot on the opposite side of the main 12v battery connection away from its current position exposing the internal motor connection.
You can at this point remove the nut and connect the proper size ring terminal on the R wire. Connect the ring terminal to the stud and replace the nut and rubber boot.
It may be easier to connect the ring and a short amount of wire (pigtail) to the terminal, then connect into the R wire with spade or bullet male & female connectors. This may help the installation process.
Details
- IMI-108N
- IMI-108N
- IMI Performance Products
- New
Shipping Information
- Item Requires Shipping
- 12.0 lbs.
Customer Reviews
Total Reviews (1)
You must login to post a review.
Reviewed by: Hunter05/17/2024 12:49AM
Product ownership: Less than 1 month
Purchased from: Butler Performance Inc.
Comments:
Let me start by saying this is the first review I have ever taken the time to write my entire life. I have a 1968 gto with a 400 motor / four speed Muncie / long tube headers. I was suffering from the notorious “Pontiac heat soak” issue with the original starter not wanting to crank when the engine was hot. I did some research and came across this starter. Install was very easy, and I had absolutely no issues with fitment near the headers. I’ve driven my car in Cali the past few weeks (90+ degrees outside) and parked after. I let it sit for 20-30 ish minutes and have no issues starting at all. Doesn’t even stutter and cranks the engine no problem even when really hot and the engine is “heat soaked”…. I couldn’t recommend this starter enough!!!!
